La Florida Metropolitan Hospital Clinic / BBATS Consulting & Projects SLP + MURTINHO+RABY arquitectos

Architects: BBATS Consulting & Projects SLP, MURTINHO+RABY arquitectos
Location: La Florida, La Florida, Santiago Metropolitan Region, Chile
Architect In Charge: Silvia Barbera, Jorge Batesteza Cristobal Tirado, Pedro Murtinho, Santiago Raby
Partner In Charge: Cristóbal Tirado
Area: 67504.0 sqm
Year: 2013
Photographs: Nico Saieh, Pablo Casals

Concessionaire: Sociedad Concesionaria San José-Tecnocontrol, S.A.
Project Manager: Silvia Barbera, Jorge Batesteza, Cristobal Tirado
Project Management: Silvia Barbera, Cristóbal Tirado, Santiago Raby
Collaborators: Juan Carlos Barros, Felipe Torreblanca, Sebastián Cruz, Ignacia Balart, Javier De Juan, Max Mendez, Luis Pinto, Jean Craiu, Simona Iaquinto, Dani Linares, Luisa Santos, Roberto Cortés
Structural Design: CRL Ingeniería
Landscape Design: RyR Arquitectos
Lighting Design: DLLD
Sanitary Engineering: PVT Ingenierìa
Electrical Engineering: ICG Ingenierìa
Hvac Engineering: GyZ Ingenierìa

From the architect. The Metropolitan Clinical Hospital consists of 67,504 m², 391 beds, 17 operating rooms and 4 delivery rooms, 112 consultations and procedures, 555 parking spaces and 224 seismic isolators, to house 1,500 staff.

The project it’s located on a 16,800 m2 plot with very unbalanced proportions: 350 m long and 50 m width in a ratio of 7 is 1. For this reason and in function to the complexity of the program, the occupation parameters, constructability and permitted height we decided to extreme the urban parameters looking to recover as much as ground level as we could on an on the green roof.

In response to the limitations of the land, we chose two strategies: programmatic clustering in volumetric boxes, with the aim of recovering the extent of the blocks, and setback of the facade, transforming the sidewalk into a public promenade, thus generating a prelude to building.

The first strategy is to generate the urban lecture of programmatic boxes (psychiatry, consultation, imaging, emergency) articulating the 350 m facade in four smaller volumes. Between the boxes are located the different access to the hospital. The boxes retrieve the measure of the blocks lost in the original plot.

The second strategy is the setback to the north of the first two floors of the building under the cantilevered body of hospitalization providing a more generous dimension to the sidewalk that runs parallel to the waiting rooms on the first floor. In that way we transform the sidewalk into a urban promenade which reinforces the character of the av. Froilan Lagos (ex “The Park”) and is visually linked to the internal program of the building.

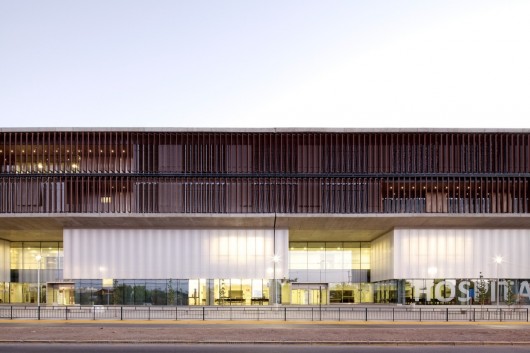

The coronation bar (3rd and 4th floor) build’s all the 350 m facade, linking the lower boxes building a marquee to the promenade and houses the hospitalization areas. The perimetral concrete belt confines the programmatic volume giving unity to the facade. This element gives to the building the dimension of the 350 m terrain and transform it into an urban reference that can be seen from the distance, from the A. Vespucio highway and the elevated urban city rail (metro).

The third floor terrace is intended as a green roof, planted with different species of sedum, with low water consumption and moderate maintenance. This is the natural extension of the south public circulation of the hospitalization bar, a place for rest and contemplation at the point where the views open to the Andes mountains, and the valley of Maipo.
