By AD Editorial Team

Architects: Rojkind Arquitectos, Gabriela Etchegaray
Location: Mexico City, Federal District, Mexico
Architects In Charge: Michel Rojkind, Gerardo Salinas, Gabriela Etchegaray
Design Team: Barbara Trujillo, Gerardo Villanueva, Gerardo Reyes, Carlos Campos, Andrea León
Area: 1650.0 sqm
Year: 2012
Photographs: Courtesy of Rojkind Arquitectos, © Jaime Navarro

Media: Rosalba Rojas
Structural Engineer: MONCAD BSI Consultores
Mep: Taller 2M
Landscape Consultant: Ambiente Arquitectos

From the architect. Following the successful completion of Falcón I headquarters in 2003, the client retained Rojkind Arquitectos for the design of its expansion. Falcón, a supplier of medical equipment and instruments had outgrown its previous space and was in need of additional office area as well as space for a showroom and employee amenities.

Falcon headquarters are located at the heart of the traditional, and mainly residential, neighborhood of San Ángel in the southern quadrant of Mexico City. This historic area is known for its colonial architecture, amazing gardens, low buildings and cobblestone streets.

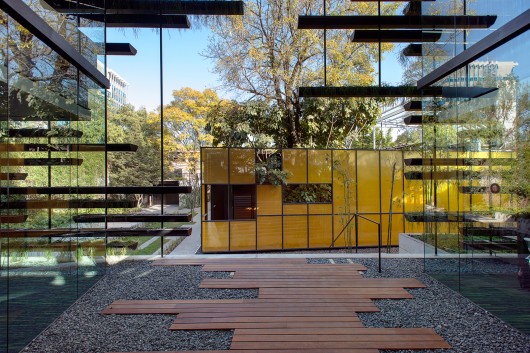

In Falcón I the main house of a walled-in existing residential complex was completely renovated and became a yellow glass box floating in the garden with interstitial landscaping behind its facade and strategically framed views to the outside. The new Falcón II expansion was conceptualized as an extension of the garden itself so that it would complement the main building and preserve its green views; visual connection between interior and exterior was emphasized.

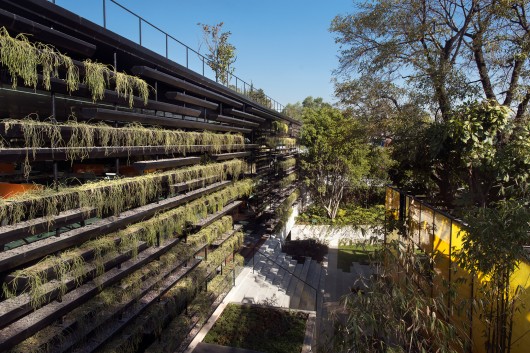

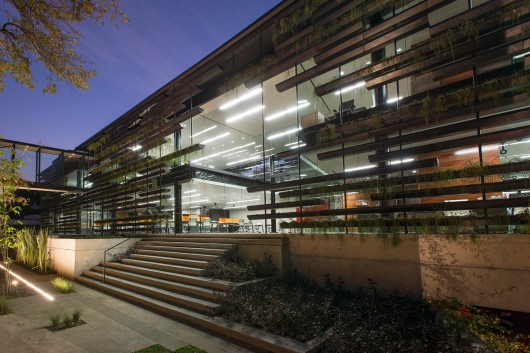

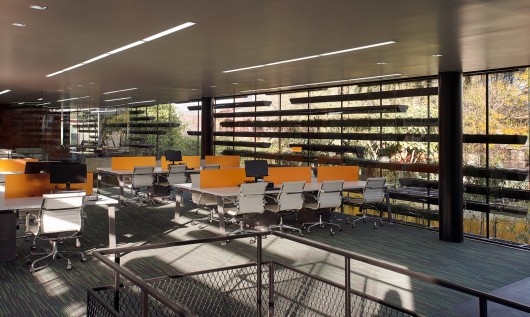

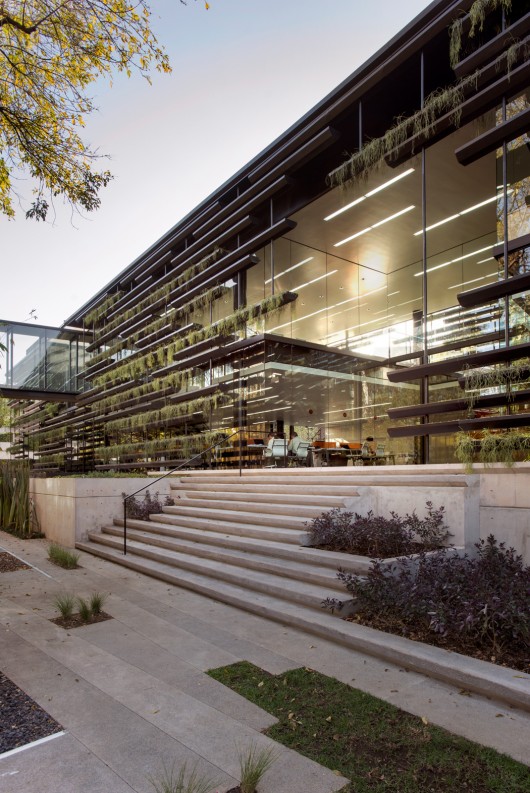

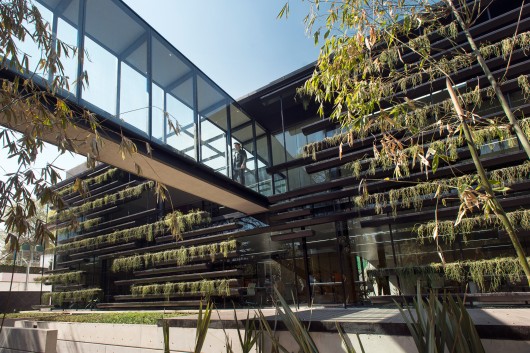

The new building was positioned directly behind the yellow glass box of Falcón I on the footprint of an existing structure that was demolished to allow room for a new underground parking and two story structure. A main challenge to overcome was the proximity to the existing building. Rojkind Arquitectos invited Gabriela Etchegaray to work together in the design of this project. The team decided on a simple transparent rectangular box to contain the expansion with plenty of natural light and undisturbed garden views. A simple transparent glass curtain wall was fronted with a sun control layer composed of 510 modular planters arranged in an offset linear configuration that continue the garden feel over the façade. The drip-irrigated planters also help cool the building in a passive solar way. The garden was then strategically taken to the inside of the glass rectangle through double height atriums that give the interior a lofty feel. Vertical circulations were grouped at the back to preserve the sense of transparency.

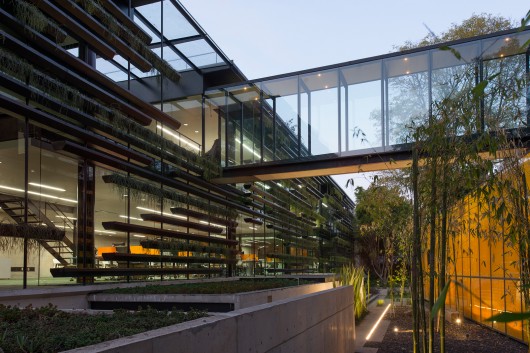

A bridge connects the rooftop park of the expansion with a new employee dining hall placed over the existing Falcón I building. Extensive landscape of the surrounding grounds and a new street entry structure complete the overall design.
