MA of Wind / Ryuichi Ashizawa Architect & Associates

By AD Editorial Team

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6c7e58ece706c000090 ma of wind ryuichi ashizawa architect associates portada shuri u5357 u5074 u304b u3089 u7acb u9762 530x434

Architects: Ryuichi Ashizawa Architect & Associates
Location: , Okinawa Prefecture, Japan
Area: 84.0 sqm
Year: 2011
Photographs: Kaori Ichikawa

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef673e58ece5029000082 ma of wind ryuichi ashizawa architect associates img012 125x125 MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef636e58ece706c00008d ma of wind ryuichi ashizawa architect associates img011 125x125 MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5dfe58ece502900007e ma of wind ryuichi ashizawa architect associates img002 125x125

Structure: RC
Structure Engineer: TAPS structural engineering office
Construction: Daichi construction office
Site Area: 210.96㎡
Total Floor Area: 109.13㎡

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5f1e58ece706c00008b ma of wind ryuichi ashizawa architect associates img005 530x421

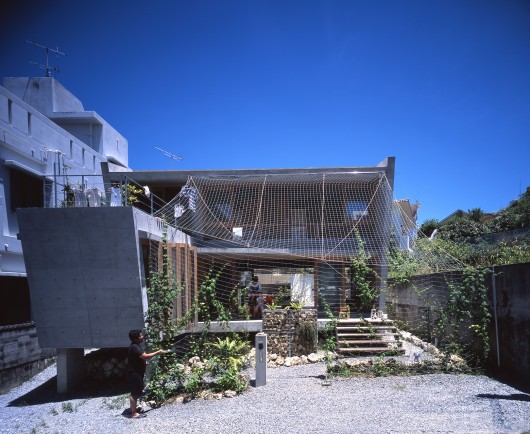

From the architect. Okinawa is a beautiful Japanese southern island where it’s possible to appreciate many beautiful natural scenes. The strong solar radiation and typhoons are the only phenomena that makes it unpleasant. Through the ages, people have found ways of living together with nature and generate environments which makes their life richer. This project is a house for a young couple and a little girl in Shuri Nahacity, Okinawa.

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6ace58ece5029000085 ma of wind ryuichi ashizawa architect associates okinawaliving1 530x421

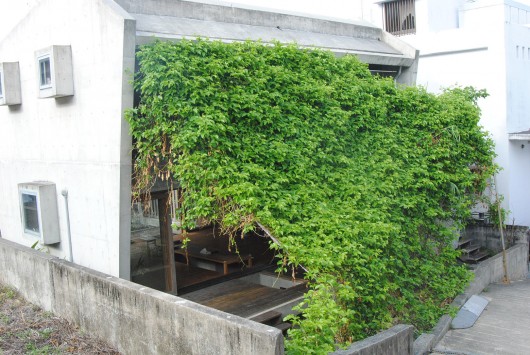

We proposed a better dwelling using natural energy without mechanical equipment. The large eaves makes deep shadows that protect life against excessive insolation in Okinawa. The green screen which is covered with plants is set on the ground from the roof. In summer, this green screen will create shade and protection from the sun light. In winter, sunlight enters inside the room through the leaves. And this green screen guards the privacy of the inhabitants. The first floor is raised about 3 feet from the ground for natural ventilation. A natural wind passes through the space beneath the floor between the first and the ground level.

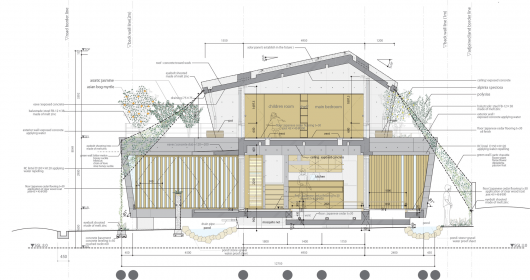

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6f4e58ece5029000086 ma of wind ryuichi ashizawa architect associates section 530x280

Wind comes through and inside the room by vent which are set on first and second floor slab. A hot wind in summer is chilled by the heat of evaporation on the pond, this pond is located under first floor.

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef62ae58ece5029000080 ma of wind ryuichi ashizawa architect associates img010 530x666

In the past in Okinawa, an aqueduct and is water was used frequently by the people in their daily life. This house large roof works as the same mechanism gathering rain water that is lead to the pond or basin on the second floor. Catchment of water is used effectively for plants.

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5dfe58ece502900007e ma of wind ryuichi ashizawa architect associates img002 530x421

With this project, we proposed a better dwelling and environment that adjusts to the unique and severe climate of Okinawa.

MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5cde58ece502900007d ma of wind ryuichi ashizawa architect associates dsc 0007  2  530x355

MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6c7e58ece706c000090 ma of wind ryuichi ashizawa architect associates portada shuri u5357 u5074 u304b u3089 u7acb u9762 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5cde58ece502900007d ma of wind ryuichi ashizawa architect associates dsc 0007  2  125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef673e58ece5029000082 ma of wind ryuichi ashizawa architect associates img012 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef636e58ece706c00008d ma of wind ryuichi ashizawa architect associates img011 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5dfe58ece502900007e ma of wind ryuichi ashizawa architect associates img002 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef5f1e58ece706c00008b ma of wind ryuichi ashizawa architect associates img005 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6ace58ece5029000085 ma of wind ryuichi ashizawa architect associates okinawaliving1 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef62ae58ece5029000080 ma of wind ryuichi ashizawa architect associates img010 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates © Kaori Ichikawa  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef681e58ece5029000083 ma of wind ryuichi ashizawa architect associates img013 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Site Plan  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef780e58ece706c000094 ma of wind ryuichi ashizawa architect associates site plan 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates First Floor Plan  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef609e58ece502900007f ma of wind ryuichi ashizawa architect associates 1f plan1 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates First Floor Plan  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef61fe58ece706c00008c ma of wind ryuichi ashizawa architect associates 1f plan 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Second Floor Plan  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef64de58ece5029000081 ma of wind ryuichi ashizawa architect associates 2f plan 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Second Floor Plan  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef66ae58ece706c00008e ma of wind ryuichi ashizawa architect associates 2f plan1 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Section  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef76fe58ece706c000093 ma of wind ryuichi ashizawa architect associates sectionbb 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Section  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef713e58ece706c000092 ma of wind ryuichi ashizawa architect associates sectionaa 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Section  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6f4e58ece5029000086 ma of wind ryuichi ashizawa architect associates section 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Diagram Section  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef691e58ece706c00008f ma of wind ryuichi ashizawa architect associates diagram section 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Diagram  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef6d3e58ece706c000091 ma of wind ryuichi ashizawa architect associates diagram2 125x125
MA of Wind / Ryuichi Ashizawa Architect & Associates Diagram  MA of Wind / Ryuichi Ashizawa Architect & Associates 553ef69fe58ece5029000084 ma of wind ryuichi ashizawa architect associates diagram 125x125
