Courtesy of CORE Architects
- Architects: CORE Architects
- Location: Monument Channel, Georgian Bay, ON, Canada
- Area: 2125.0 ft2
- Project Year: 2013
- Photographs: Courtesy of CORE Architects
- Collaborators: Timber Systems was the Structural Engineer, Allan Window Technologies
- Area: Go Home Bay area of Georgian Bay, Ontario
- Structural Engineer: Timber Systems
- Owned And Built: Charles Gane, Principal, CORE Architects
Courtesy of CORE Architects

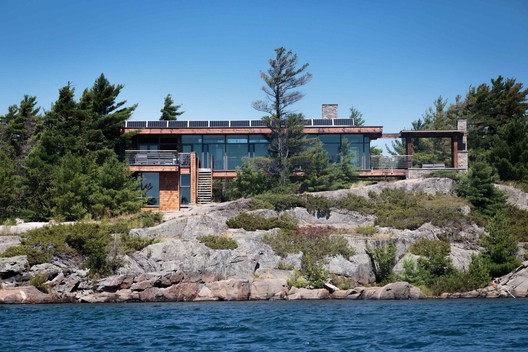

From the architect. The design and construction of this cottage located in Monument Channel Georgian Bay was completed in 2013.
Courtesy of CORE Architects
The cottage is 2,125 sq. ft., and is designed for year-round use. The primary building material is Douglas Fir, which was used as the exposed structural frame, ceiling decking, interior wall finishes, interior cabinetry and kitchen island, etc.
Courtesy of CORE Architects
The design celebrates the simple use of a post and beam structural frame, where the rhythm of the columns, beams and purlins gives an overall organizational logic to the scheme. The wood is either solid sawn or milled to a profile, the timbers are sometimes massive and other times just efficient in their size, all the timbers were prefabricated, drilled for connections, etc. in the factory. The wood is left untreated and natural on the interior and finished with a clear, penetrating oil sealer on the exterior. The exterior cladding is either structural wood or cedar shingles; Ipe is also used as the exterior decking material and for the guardrail top rail/handrail. All materials had to be barged in given the remote location of the site. The house produces all its own electricity from solar panels and treats its own wastewater with a bio-filter septic system.
Courtesy of CORE Architects
Floor Plan
Courtesy of CORE Architects
